Motion Reference Units (MRUs)
MRU meets requirements for marine and hydrographic applications. It is an enhanced, high-performance strapdown Motion Sensor, that determines Pitch & Roll, Heave, Sway, Surge, Accelerations, Angular rates, Heading, Velocity and Positions.
Available in IP-67 or Subsea (200m) enclosures
0.02 ° RMS Pitch & Roll dynamic accuracy
Available in Basic, Enhanced and Professional models
Professional includes GNSS position and dual antenna option (MRU-PD)

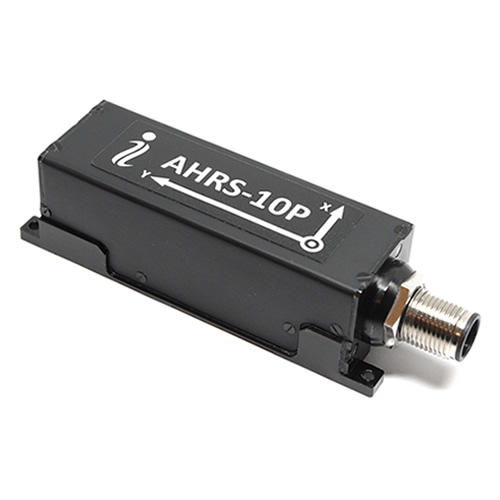

Attitude and Heading Reference Systems (AHRS)
Attitude and Heading Reference Systems are enhanced, high-performance strapdown systems, that determine absolute orientation (Heading, Pitch and Roll) and Heave for any device on which they are mounted. Orientation is determined with high accuracy for both motionless and dynamic applications.
Highly accurate, sensitive and temperature stable Fluxgate magnetometers
0.3 deg Gyro-Stabilized Slaved Magnetic Heading and 0.05 deg Pitch & Roll accuracy
Suitable for Primary Attitude Reference and as Motion Control System for marine applications
Environmentally sealed (IP67)

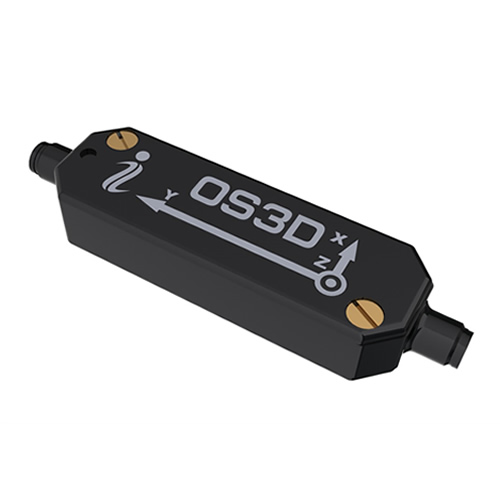

Orientation Sensors (OS3DM)
Specialising in dynamic motion applications, Inertial Labs 3D Miniature and Subminiature Orientation Sensors offer a wide range of options for virtually, orientation and training applications. From embeddable board level OEM units to daisy chained multi-sensor networks.
A wide range of options for virtually, orientation and training applications
Embeddable board level OEM units
Daisy chained multi-sensor networks
Applications include Motion Capture, Virtual Reality, Movement Science, Military Training, Biomechanics, Rehabilitation, R&D and Education

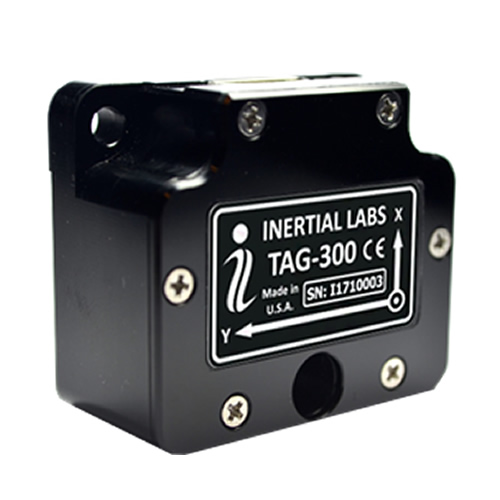

Two and Three Axis Gyroscopes (TAG)
TAG-200 and TAG-300 utilize advanced performance, tactical-grade MEMS sensitive elements, of which size, power consumption, reliability and performance are ideal for accomplishing complex tasks requiring accurate stabilization of assorted platforms.
+450; +950; +2000°/sec measurement range
2°/hr Bias in-run stability

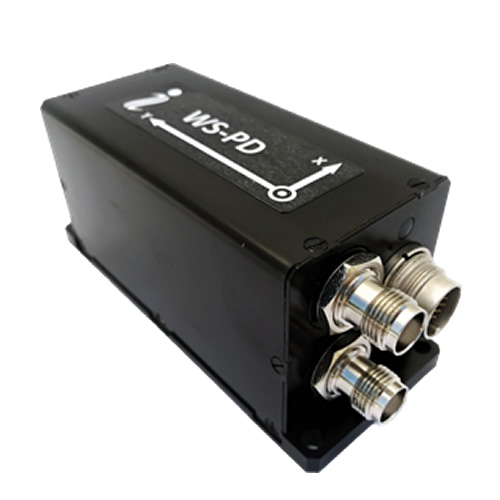

Wave Sensors (WS)
An enhanced, high-performance strap-down Wave, Direction & Motion Sensor, that determines Significant Wave Height, Max Wave Height, Wave Period, Wave Direction, Wave Energy, Directional Width, Fourier Coefficients, Mean Spread Angle, Heading, Pitch, Angular Rates, Accelerations, Magnetometer Data, Temperature, Heave, Heave Velocity and Position for any device to which it is mounted. Available in Enhanced (WS-E) and Professional Dual (WS-PD) models.
